Step 1 of 10
01. Material
Primary frame material for your custom build.
Required
Material

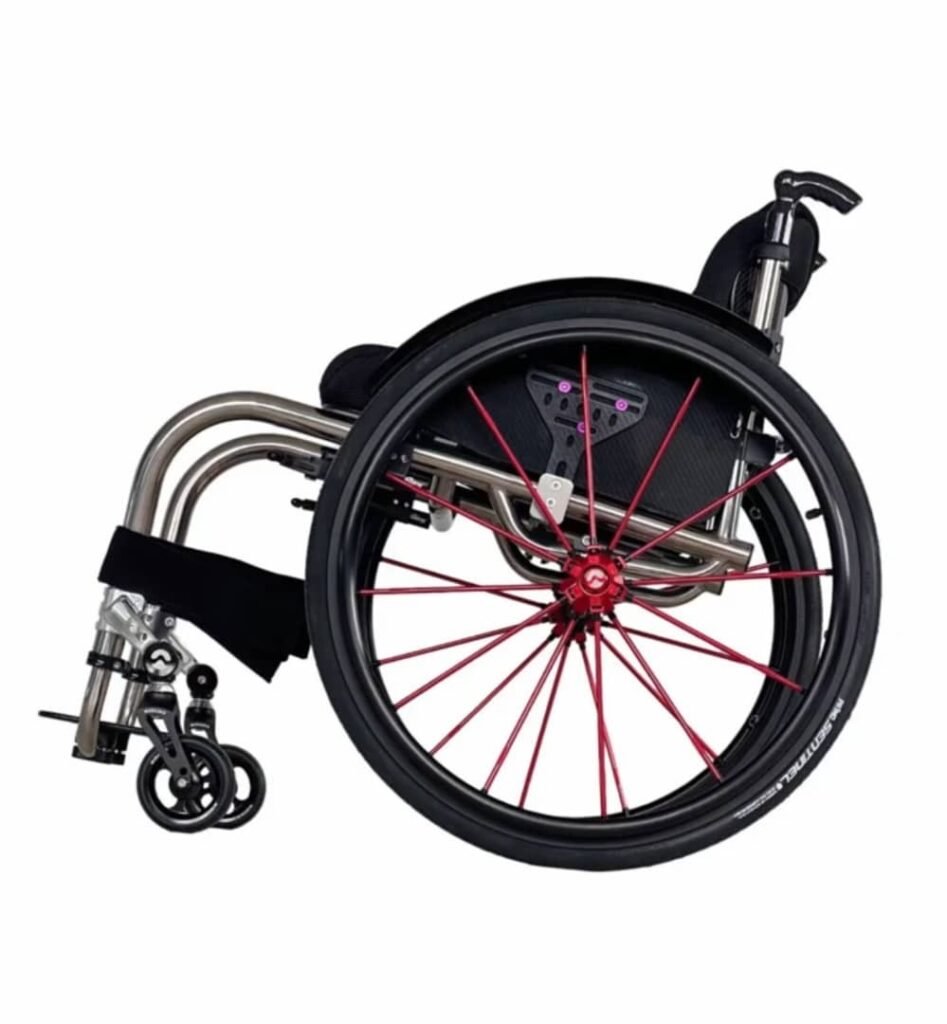

Custom Titanium
Titanium alloy custom wheelchair — rigid or foldable. Highest max
| Price range (RRP) | AU$12,000 foldable / AU$14,000 rigid |
|---|---|
| Lead time | 16 weeks |
| Max load | 150 kg (highest) |
| Fit type | custom |
| Frame weight (no wheels) | 7.6–9 kg |
| Frame type | rigid or foldable |
| Frame material | titanium alloy |
| Side guard | carbon fibre |
| Seat panel | soft fabric |
| Backrest | carbon fibre |
| Drive wheel | 24" std / 26" optional |
| Drive rim | aluminium alloy |
| Camber | 0° / 3° |
| Tyre | 24 × 1 black rubber |
| Front caster | 4" solid |
| Centre of gravity | 3-gear system (optional +AU$2,000) |
| Seat width | 34/36/38/40/42/44 cm |
| Seat depth | 38/40/42 cm |
| Backrest height | 35/37 cm |
01. Technical specifications
Price range — RRP (full custom): AU$12,000 (foldable) / AU$14,000 (rigid)
Lead time: 16 weeks
Max load: 150 kg (highest)
Fit type: custom
Frame weight without wheels: 7.6–9 kg
Frame type: rigid or foldable
Frame material: titanium alloy
Side guard: carbon fibre
Seat panel: soft fabric
Backrest: carbon fibre
Drive wheels: 24-inch standard, 26-inch optional
Drive wheel rim: aluminium alloy
Camber angle: 0° / 3° (only Manual Custom model with a camber option)
Tyre: 24 × 1 black rubber
Front caster: 4-inch solid tyre, single- or double-arm fork
Centre of gravity: 3-gear system — optional adjustment additional AU$2,000
02. Custom measurements
Seat width (cm): 34 / 36 / 38 / 40 / 42 / 44 (6 fixed options; widest at 44 cm)
Seat depth (cm): 38 / 40 / 42 (3 fixed options)
Backrest height (cm): 35 / 37 (highest backrest)
Front seat height (cm): Low 45.0 | High 47.5
Rear seat height (cm): Low 40.0 | High 42.5
Lower-leg / footplate: titanium adjustable range typically 2–12 cm
Customer measurement checklist: full measurement sheet + camber preference + rigid vs foldable choice
04. Electric / Manual assist
Base propulsion: Manual (self-propelled)
Optional add-ons (from Manual Custom tree): Power Assist Kit or Push Assist Kit
Best for: higher body weight, clinical seating, users needing camber or rigid performance

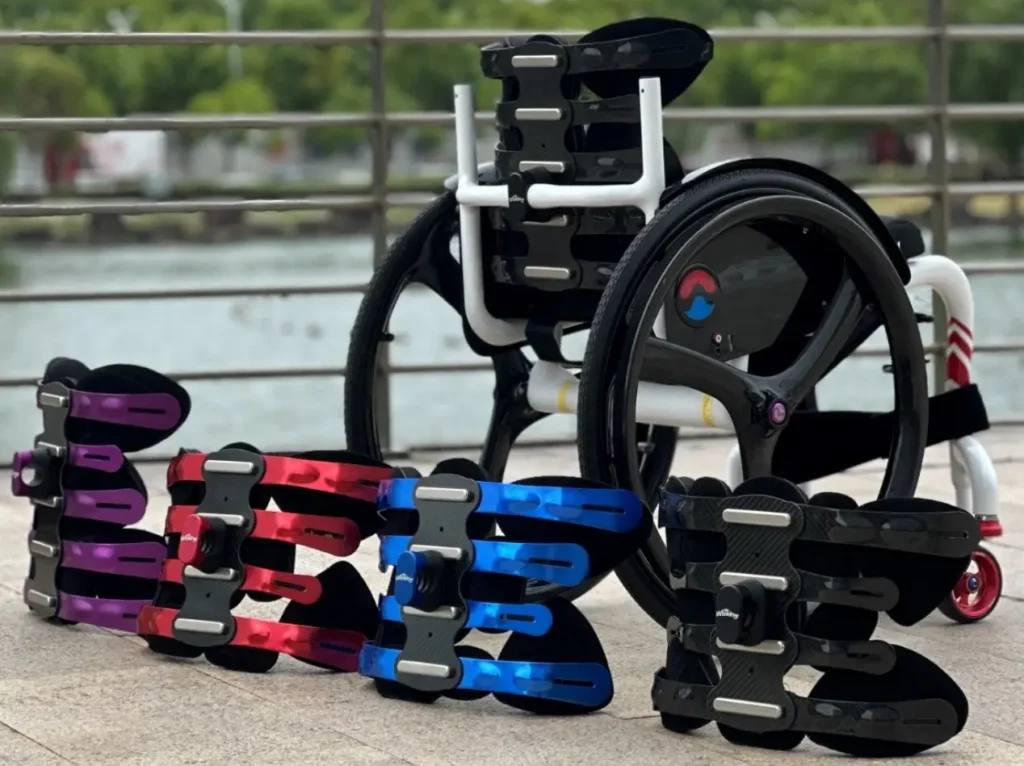

05. Accessories
Recommended: Power Assist Kit; Push Assist Kit; posture backrest; CF FlexSeat; contoured cushion; handbrakes
Compatible: 24-inch / 26-inch wheels; SideWheels; under-seat storage bag
Warranty information for this product will be published here. Contact us for full terms.
i3D Mobility | Mobility Designed Around Everyday Life
Precision carbon and titanium mobility — engineered for independence.

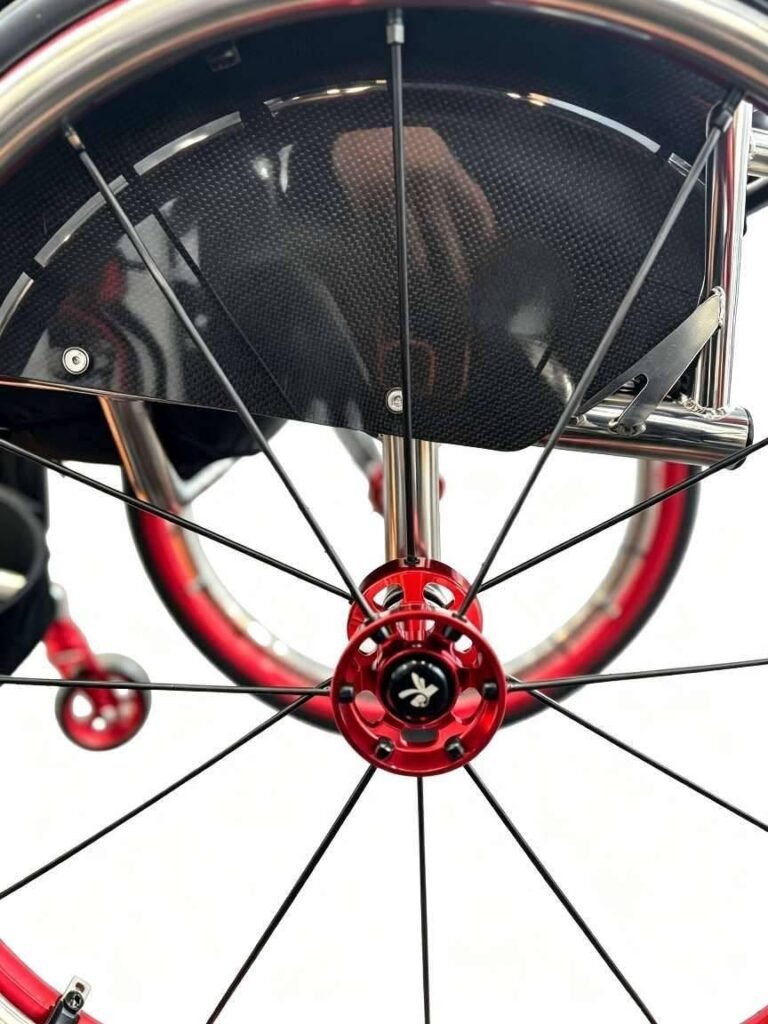

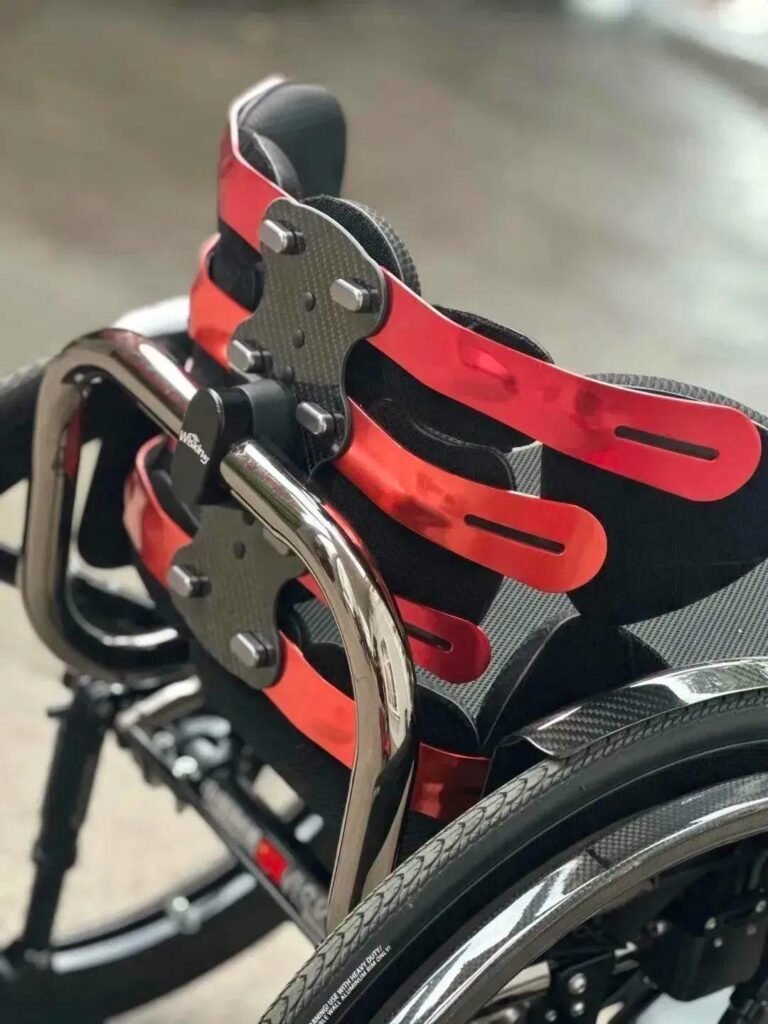

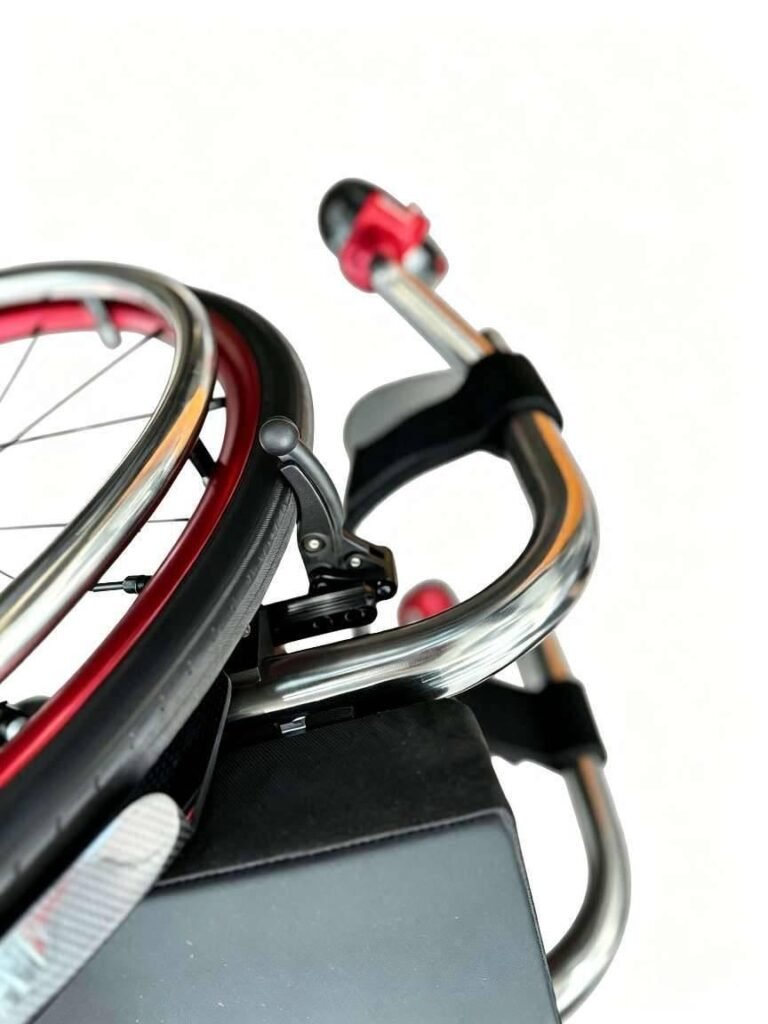

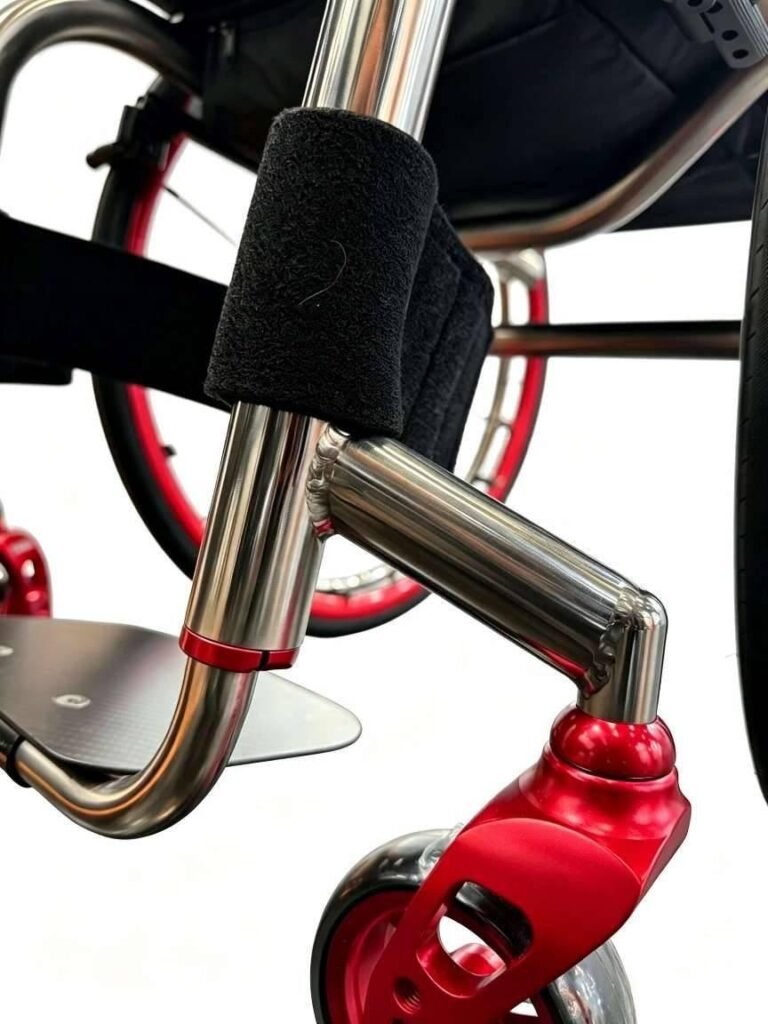

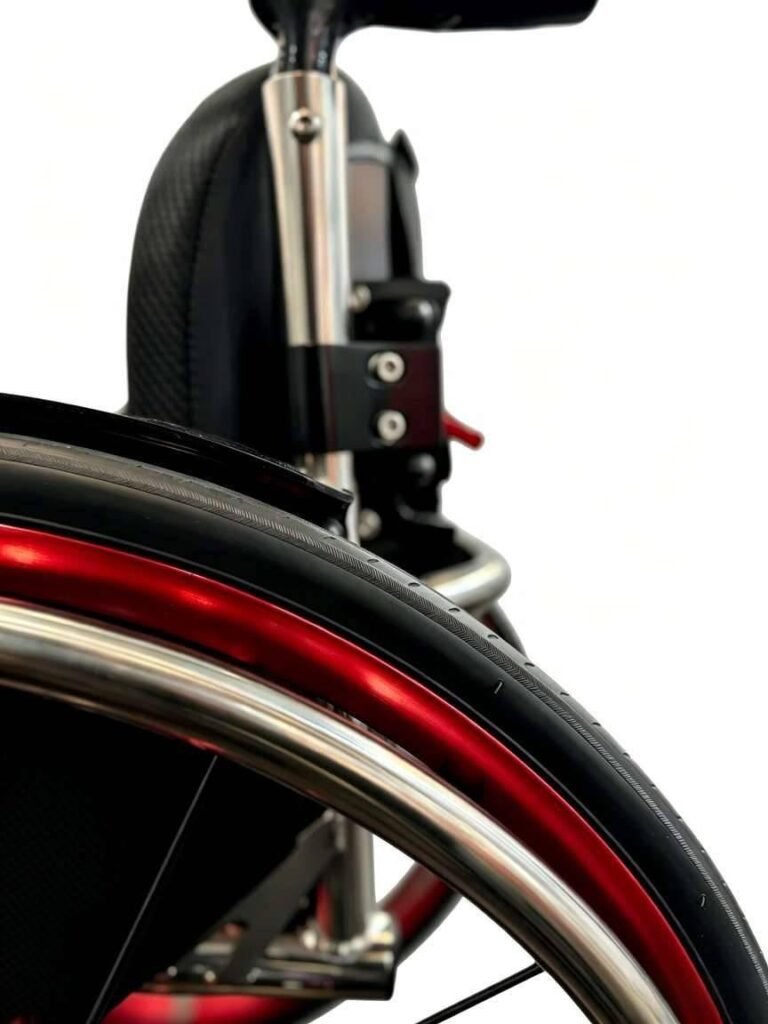

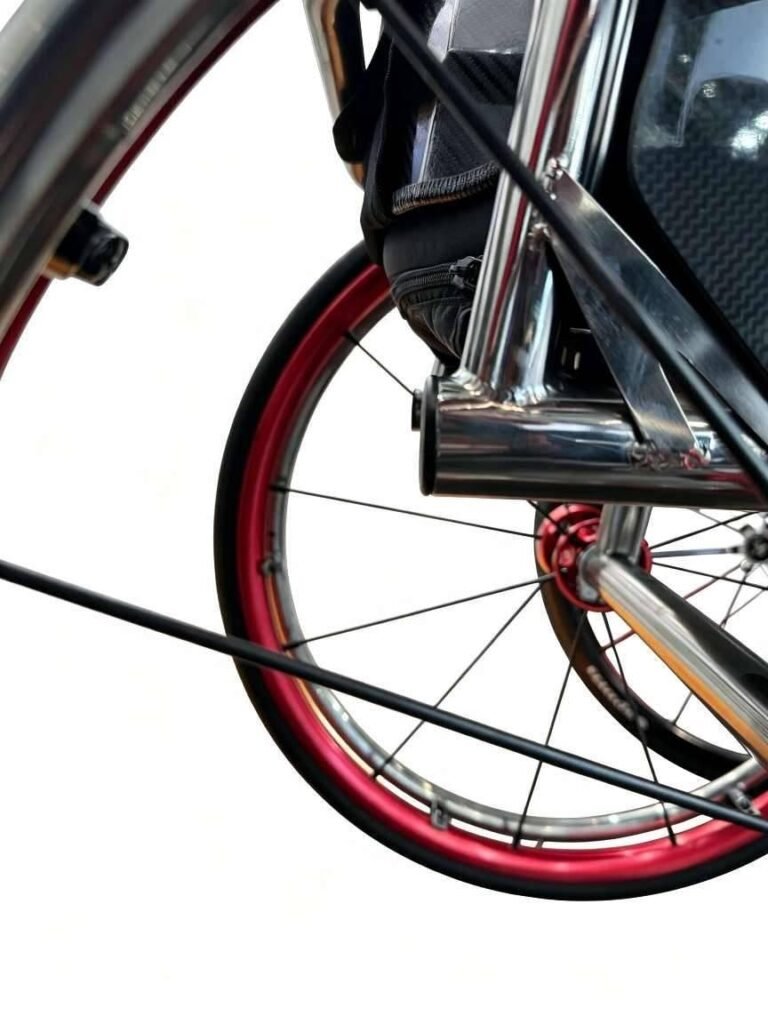

Close-up details
Engineered precision, photographed up close
Tap any image to view full size — frame geometry, materials, and finish details.
Custom configuration
Build your custom wheelchair
Start with material, folding type, electric assist and accessories, then continue through seat, frame and measurement options. Your configuration is summarised live and sent with your order so our fitting team can quote a millimetre-accurate build.
Step 2 of 10
02. Folding Type
How the frame folds for transport and daily use.
Required
Folding type
Step 3 of 10
03. Electric Assist
Power-assist options — leave blank if manual only.
Optional
Select all that apply. Leave blank for manual-only builds.
Assist system
Optional
Optional
Range (20km–100km)
Optional
Select all that apply.
Assist position
Step 4 of 10
04. Accessory
Wheels, seating and posture components — select any that apply.
Optional
Select all accessories to include in your quote.
Accessories
Step 5 of 10
Seat
Seat dimensions exclude the cushion. Precise millimetre fit is available on custom frames.
Required
Hip / back width. Aluminium & carbon: 34–42 cm continuous. Titanium: 34–44 cm in 2 cm steps.
Seat width
Required
From the back of the buttocks toward the knee. Typical custom range 38–46 cm.
Seat depth
Optional
Aluminium ≈ 32 cm, carbon ≈ 30 cm, titanium 35 / 37 cm.
Backrest height
Optional
Seat to footplate. Low 35–41, Ext. Low 37–43, High 37–43, Ext. High 39–45 cm.
Lower leg length
Step 6 of 10
Seat height
Front and rear seat heights, frame to floor, cushion excluded.
Optional
Aluminium: Low 45 / Ext. Low 46 / High 48 / Ext. High 49 cm. Carbon options around 43 / 45 / 47 cm.
Front seat height
Optional
Aluminium Low / Ext. Low 37 cm; High / Ext. High 41 cm. Carbon ≈ 38 / 40 / 42 cm.
Rear seat height
Optional
Titanium adjustable range is typically 2–12 cm.
cm
Step 7 of 10
Frame options
Custom frames are built to millimetre precision. Lead time is typically 16 weeks.
Optional
Side guard
Optional
Aluminium 120 kg, carbon 100 kg, titanium 150 kg, electric assist 136 kg.
kg
Step 8 of 10
Wheels & handling
Drive wheels, camber and centre of gravity affect stability and wheelie performance.
Optional
24-inch standard, 26-inch optional on custom manuals.
Drive wheel size
Optional
Titanium is the only custom line with a 0° / 3° camber option.
Camber angle
Optional
Gear 1 anti-tip / Gear 2 balanced / Gear 3 easy wheelie. Adjustment may be extra.
Centre of gravity
Optional
Front caster preference
Step 9 of 10
Body measurements
Sit upright for seat measures. These help us specify a millimetre-accurate custom fit.
Optional
Back of the buttocks to the front of the knee.
cm
Optional
Back of the buttocks to the back of the knee.
cm
Optional
Seated width across the hips. Take three readings if needed.
cm
Optional
cm
Optional
kg
Step 10 of 10
Submit your requirements
Please complete the form below and we will contact you directly to answer any questions that you may have.
Your build
Your configuration is ready when you are.
Place order
